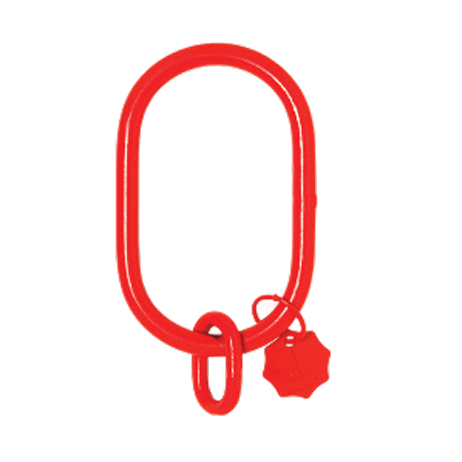

Anel TWNI0815 para Corrente Grau 8

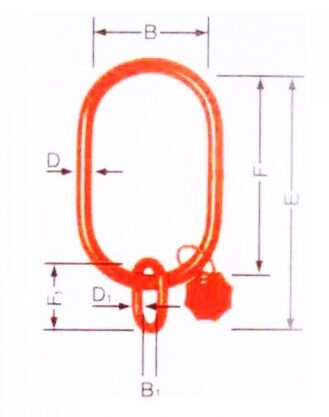

Dimensões
| Código de Referência | Tamanho do Gancho da Ponte (mm) | Dimensões (mm) | Carga Máxima de Trabalho (Ton) | Peso (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| E | D | F | B | D1 | F1 | B1 | ||||
| TWNI0815-6A | 16 | 320 | 18 | 260 | 140 | 13 | 60 | 30 | 1,12 | 1,67 |
| TWNI0815-8A | 16 | 330 | 22 | 260 | 140 | 16 | 70 | 35 | 2,00 | 2,60 |
| TWNI0815-10A | 16 | 330 | 22 | 260 | 140 | 16 | 70 | 35 | 3,15 | 2,60 |
| TWNI0815-13A | 16 | 260 | 26 | 260 | 140 | - | - | - | 5,30 | 3,17 |
| TWNI0815-16A | 16 | 260 | 30 | 260 | 140 | - | - | - | 8,00 | 4,30 |
| TWNI0815-18A | 16 | 370 | 36 | 250 | 140 | 26 | 120 | 60 | 10,00 | 7,80 |
| TWNI0815-6B | 25 | 400 | 20 | 340 | 180 | 13 | 60 | 30 | 1,12 | 2,54 |
| TWNI0815-8B | 25 | 400 | 20 | 340 | 180 | 13 | 60 | 30 | 2,00 | 2,54 |
| TWNI0815-10B | 25 | 410 | 24 | 340 | 180 | 16 | 70 | 35 | 3,15 | 3,78 |
| TWNI0815-13B | 25 | 410 | 28 | 340 | 180 | 16 | 70 | 35 | 5,30 | 5,07 |
| TWNI0815-16B | 25 | 430 | 32 | 340 | 180 | 20 | 90 | 45 | 8,00 | 6,95 |
| TWNI0815-18B | 25 | 440 | 40 | 340 | 180 | 22 | 100 | 50 | 10,00 | 10,90 |
| TWNI0815-20B | 25 | 340 | 40 | 340 | 180 | - | - | - | 12,50 | 9,97 |
| TWNI0815-22B | 40 | 340 | 40 | 340 | 180 | - | - | - | 15,00 | 9,97 |
| TWNI0815-6C | 40 | 490 | 22 | 430 | 220 | 13 | 60 | 30 | 1,12 | 3,73 |
| TWNI0815-8C | 40 | 490 | 22 | 430 | 220 | 13 | 60 | 30 | 2,00 | 3,73 |
| TWNI0815-10C | 40 | 500 | 26 | 430 | 220 | 16 | 70 | 35 | 3,15 | 5,33 |
| TWNI0815-13C | 40 | 500 | 30 | 430 | 220 | 16 | 70 | 35 | 5,30 | 7,05 |
| TWNI0815-16C | 40 | 520 | 34 | 430 | 220 | 20 | 90 | 45 | 8,00 | 9,41 |
| TWNI0815-18C | 40 | 530 | 42 | 430 | 220 | 22 | 100 | 50 | 10,00 | 14,50 |
| TWNI0815-20C | 40 | 430 | 42 | 430 | 220 | - | - | - | 12,50 | 13,50 |
| TWNI0815-22C | 40 | 430 | 42 | 430 | 220 | - | - | - | 15,00 | 13,50 |
