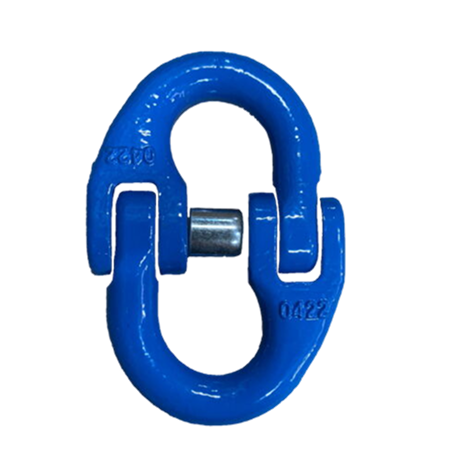

Elo de Ligação Grau 10

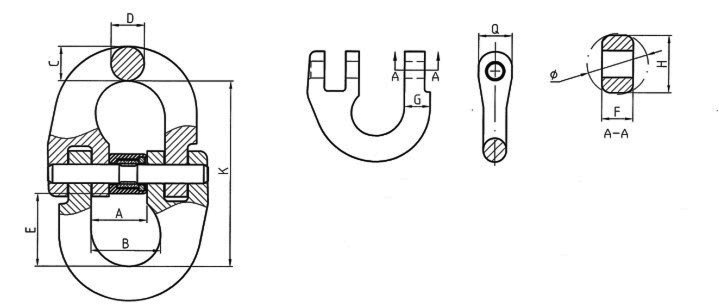

Dimensões
| REFERÊNCIA | DIMENSÕES (MM) | CMT TON | PESO KG | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | K | H | E | F | Ø | G | Q | |||
| ELI-6-10 | 14,0 | 16,9 | 8,5 | 7,0 | 44,5 | 11,0 | 16,0 | 5,5 | 11,4 | 7,4 | 12,0 | 1,4 | 0,08 |
| ELI-7-10 | 18,5 | 22,5 | 10,0 | 8,2 | 59,0 | 12,5 | 23,0 | 7,2 | 13,0 | 8,2 | 15,0 | 1,9 | 0,166 |
| ELI-7/8-10 | 18,5 | 22,0 | 11,0 | 8,5 | 59,0 | 13,0 | 23,0 | 7,8 | 14,0 | 8,5 | 15,5 | 2,5 | 0,17 |
| ELI-8-10 | 18,5 | 22,7 | 10,5 | 10,0 | 63,0 | 14,0 | 24,0 | 7,8 | 15,0 | 10,2 | 14,0 | 2,5 | 0,18 |
| ELI-10-10 | 23,0 | 27,7 | 12,6 | 12,6 | 71,0 | 18,0 | 28,0 | 9,6 | 19,0 | 12,6 | 18,0 | 4,0 | 0,34 |
| ELI-13-10 | 28,0 | 33,2 | 16,5 | 16,5 | 92,5 | 23,0 | 34,0 | 12,5 | 24,5 | 17,0 | 23,0 | 6,7 | 0,68 |
| ELI-16-10 | 33,5 | 39,0 | 20,0 | 20,0 | 106,5 | 29,5 | 39,0 | 16,2 | 31,0 | 20,0 | 29,5 | 10,0 | 1,22 |
| ELI-20-10 | 42,0 | 47,3 | 25,0 | 25,0 | 123,0 | 35,5 | 42,0 | 18,0 | 38,0 | 25,5 | 35,5 | 16,0 | 2,13 |
| ELI-22-10 | 48,0 | 55,0 | 27,0 | 27,0 | 137,5 | 39,0 | 50,0 | 21,0 | 41,0 | 27,0 | 39,0 | 19,0 | 3,0 |
| ELI-26-10 | 61,0 | 68,0 | 32,0 | 32,0 | 163,0 | 45,0 | 63,0 | 25,0 | 49,0 | 32,0 | 45,0 | 26,5 | 5,22 |
| ELI-32-10 | 80,0 | 87,0 | 40,0 | 40,0 | 197,0 | 54,0 | 78,0 | 33,0 | 61,0 | 38,5 | 54,0 | 40,0 | 9,55 |
