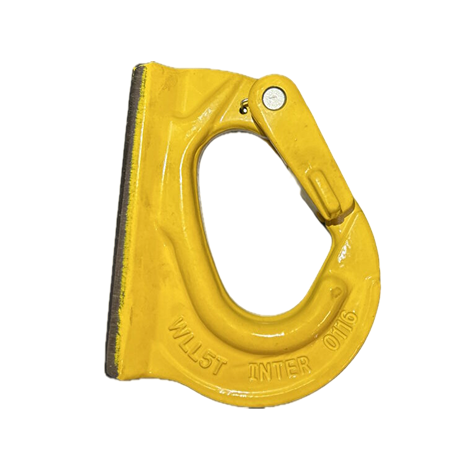

Gancho de Escavadora Grau 8

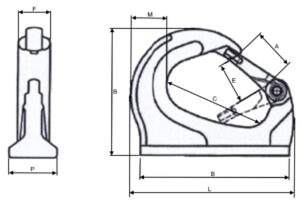

Dimensões
| Código de Referência | Carga Máxima de Trabalho (ton) | Dimensões (mm) | Peso (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | F | H | M | P | L | |||
| GE8-01 | 1,00 | 23,0 | 76,0 | 63,0 | 22,0 | 18,0 | 93,0 | 22,5 | 25,0 | 101,0 | 0,54 |
| GE8-02 | 2,00 | 28,5 | 92,0 | 66,0 | 26,0 | 20,5 | 81,0 | 23,3 | 34,0 | 111,0 | 0,87 |
| GE8-03 | 3,00 | 30,0 | 106,0 | 75,0 | 30,0 | 24,0 | 116,0 | 30,0 | 36,0 | 128,0 | 1,27 |
| GE8-05 | 5,00 | 39,0 | 133,0 | 98,0 | 36,0 | 28,0 | 160,0 | 43,0 | 43,5 | 170,0 | 2,70 |
| GE8-08 | 8,00 | 36,0 | 137,0 | 99,0 | 34,5 | 39,0 | 166,0 | 50,0 | 51,0 | 175,0 | 3,50 |
| GE8-10 | 10,00 | 49,0 | 169,0 | 140,0 | 49,0 | 38,0 | 205,0 | 55,0 | 53,0 | 222,0 | 5,20 |
