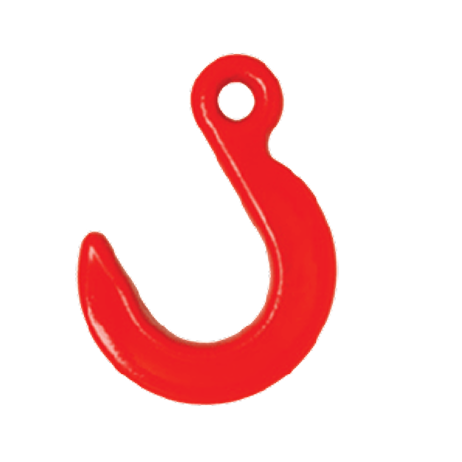

Gancho de Fundição (GF) para Corrente Grau 8

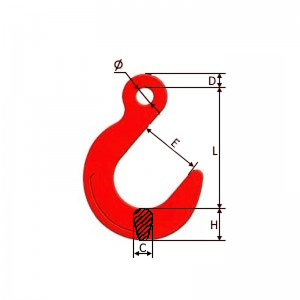

Dimensões
| Código de Referência | Carga Máxima de Trabalho (Ton) | Dimensão da Corrente (mm) | Dimensões (mm) | Peso (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| E | L | D | Φ | H | C | ||||
| GF - 6 | 1,6 | 6 | 60,0 | 95,0 | 10,0 | 17,0 | 24,0 | 20,0 | 0,9 |
| GF - 7/8 | 2,0 | 7/8 | 63,5 | 125,0 | 14,0 | 18,0 | 33,0 | 27,0 | 1,08 |
| GF - 10 | 3,2 | 10 | 76,0 | 146,0 | 16,5 | 22,0 | 35,0 | 32,0 | 2,04 |
| GF - 13 | 5,4 | 13 | 89,0 | 175,0 | 20,0 | 27,0 | 41,0 | 38,0 | 3,20 |
| GF - 16 | 8,2 | 16 | 102,0 | 205,0 | 23,0 | 32,0 | 48,0 | 45,0 | 5,53 |
| GF - 18/20 | 12,8 | 18/20 | 114,5 | 235,0 | 25,5 | 38,0 | 54,0 | 51,0 | 8,75 |
| GF - 22 | 15,5 | 22 | 127,5 | 288,0 | 30,0 | 45,0 | 70,0 | 65,0 | 11,90 |
