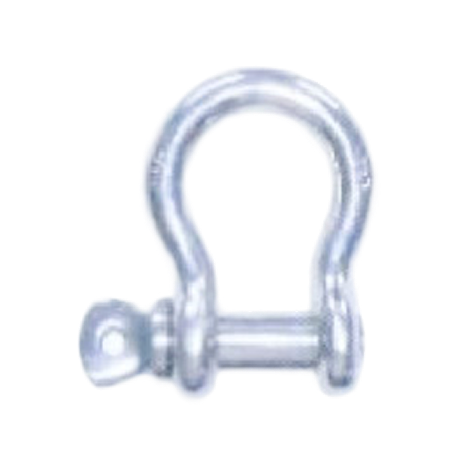

Manilha Curva Pino Rosqueado Inox AISI 316

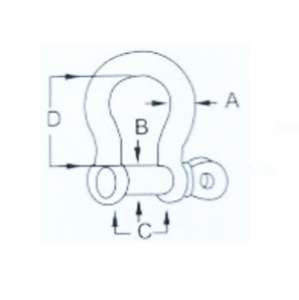

Dimensões
Fator de Segurança 4:1
| REF. FS 4:1 | DIÂMETRO | A (polegada) | B (polegada) | C (polegada) | D (polegada) | CARGA DE TRABALHO (ton.) |
|---|---|---|---|---|---|---|
| MICPR - 5 | 3/16” | 3/16” | 1/4” | 0,38" | 0,88" | 0,14 |
| MICPR - 6 | 1/4” | 1/4” | 5/16” | 0,47" | 1,13" | 0,20 |
| MICPR - 8 | 5/16” | 5/16” | 3/8” | 0,53" | 1,22" | 0,29 |
| MICPR - 10 | 3/8” | 3/8” | 7/16” | 0,66" | 1,44" | 0,45 |
| MICOR - 11 | 7/16" | 7/16" | 1/2" | 0,75" | 1,69" | 0,66 |
| MICPR - 13 | 1/2” | 1/2” | 5/8” | 0,81" | 1,88" | 0,90 |
| MICPR - 16 | 5/8” | 5/8” | 3/4” | 1,06" | 2,38" | 1,38 |
| MICPR - 19 | 3/4” | 3/4” | 7/8” | 1,25" | 2,81" | 2,03 |
| MICPR - 22 | 7/8” | 7/8” | 1” | 1,44" | 3,31" | 2,72 |
| MICPR - 25 | 1” | 1” | 1.1/8” | 1,69" | 3,75" | 3,61 |
| MICPR - 28 | 1.1/8" | 1.1/8" | 1.1/4" | 1,81" | 4,25" | 4,76 |
| MICPR - 32 | 1.1/4” | 1.1/4” | 1.3/8” | 2,03" | 4,69" | 6,17 |
| MICPR - 38 | 1.1/2” | 1.1/2” | 1.5/8” | 2,38" | 5,75" | 9,98 |
Fator de Segurança 3,5:1
| REF. FS 3,5:1 | DIÂMETRO | A (polegada) | B (polegada) | C (polegada) | D (polegada) | CARGA DE TRABALHO (ton.) |
|---|---|---|---|---|---|---|
| MICPR - 5 | 3/16” | 3/16” | 1/4” | 0,38" | 0,88" | 0,30 |
| MICPR - 6 | 1/4” | 1/4” | 5/16” | 0,47" | 1,13" | 0,50 |
| MICPR - 8 | 5/16” | 5/16” | 3/8” | 0,53" | 1,22" | 0,75 |
| MICPR - 10 | 3/8” | 3/8” | 7/16” | 0,66" | 1,44" | 1,00 |
| MICOR - 11 | 7/16" | 7/16" | 1/2" | 0,75" | 1,69" | 1,50 |
| MICPR - 13 | 1/2” | 1/2” | 5/8” | 0,81" | 1,88" | 2,00 |
| MICPR - 16 | 5/8” | 5/8” | 3/4” | 1,06" | 2,38" | 3,25 |
| MICPR - 19 | 3/4” | 3/4” | 7/8” | 1,25" | 2,81" | 4,75 |
| MICPR - 22 | 7/8” | 7/8” | 1” | 1,44" | 3,31" | 6,50 |
| MICPR - 25 | 1” | 1” | 1.1/8” | 1,69" | 3,75" | 8,00 |
| MICPR - 28 | 1.1/8" | 1.1/8" | 1.1/4" | 1,81" | 4,25" | 9,50 |
| MICPR - 32 | 1.1/4” | 1.1/4” | 1.3/8” | 2,03" | 4,69" | 12,00 |
| MICPR - 35 | 1.3/8" | 1.3/8" | 1.1/2" | 2,36" | 5,34" | 13,50 |
| MICPR - 38 | 1.1/2” | 1.1/2” | 1.5/8” | 2,38" | 5,75" | 17,00 |
| MICPR - 44 | 1.3/4" | 1.3/4" | 2" | 2,87" | 6,93" | 25,00 |
| MICPR - 50 | 2" | 2" | 2,20" | 3,22" | 7,75" | 35,00 |
