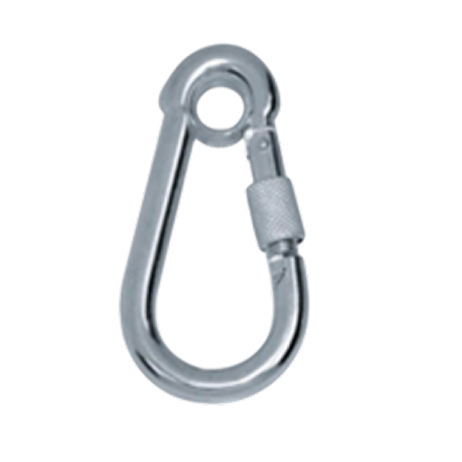

Mosquetão Trava Dupla Roscada AISI 316

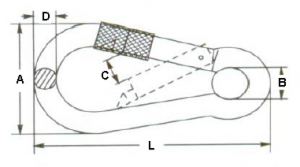

Dimensões
| CÓDIGO REFERÊNCIA | DIMENSÕES (MM) | CARGA DE TRABALHO (KG) | PESO UNIT (KG) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | L | |||
| MITD316-4 | 20,0 | 5,0 | 5,5 | 4,0 | 40,0 | 41 | 0,009 |
| MITD316-5 | 25,0 | 5,0 | 6,0 | 5,0 | 50,0 | 100 | 0,016 |
| MITD316-6 | 30,0 | 5,0 | 7,0 | 6,0 | 60,0 | 118 | 0,027 |
| MITD316-7 | 35,0 | 7,0 | 7,5 | 7,0 | 70,0 | 159 | 0,040 |
| MITD316-8 | 40,0 | 10,0 | 8,5 | 8,0 | 80,0 | 227 | 0,065 |
| MITD316-9 | 45,0 | 10,0 | 9,0 | 9,0 | 90,0 | 250 | 0,092 |
| MITD316-10 | 50,0 | 13,0 | 10,0 | 10,0 | 100,0 | 334 | 0,125 |
| MITD316-12 | 68,0 | 17,0 | 12,0 | 12,0 | 140,0 | 431 | 0,265 |
